Description

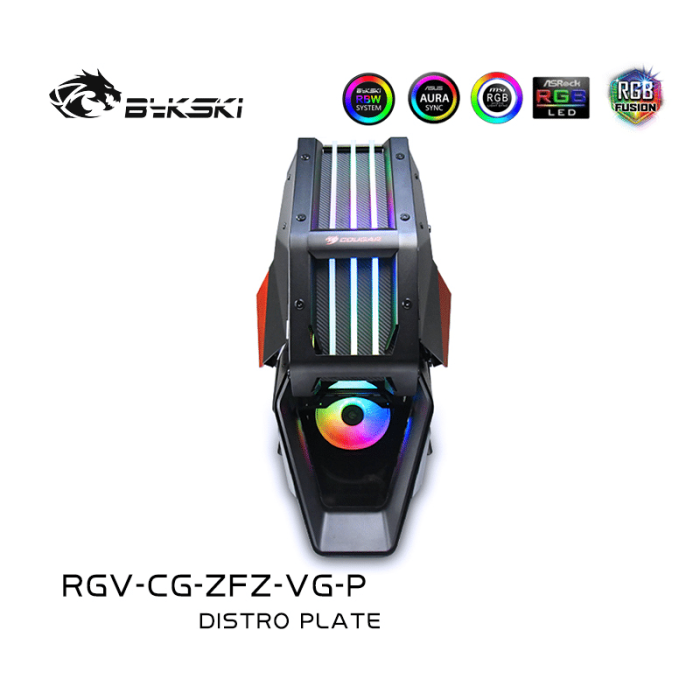

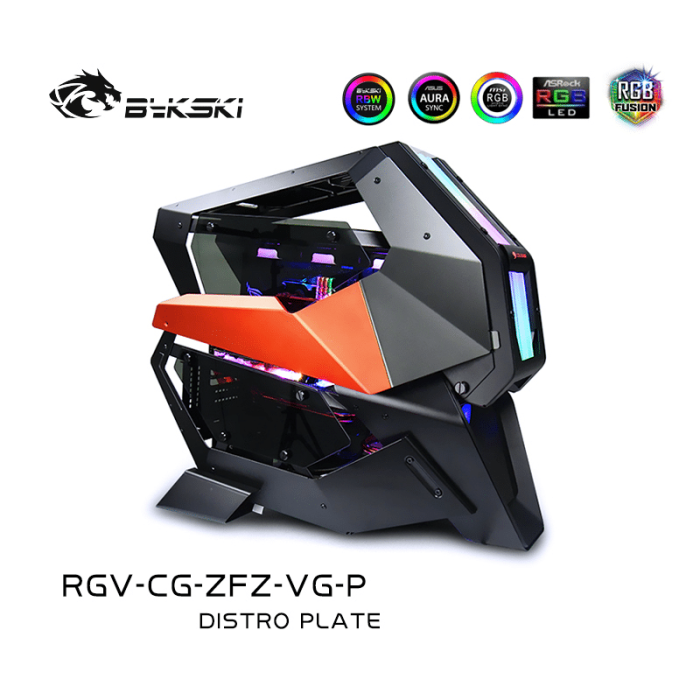

The Bykski Distro or Distribution Plates provide a distinct and innovative way to enhance your loop’s appearance. These plates are customized to fit your specific case, creating a sleek and parallel look. Moreover, they can come equipped with an OPTIONAL inline pump, allowing you to power your entire loop from the centerpiece.
The Distro Plate is built using PMMA material, featuring G1/4″ threads, and is designed to be compatible with the COUGAR CONQUER 2 case. It works well with Aluminum and Non-Aluminum loops and is engineered to support radiators up to 30mm thick or less.
In addition to the Distro Plate itself, the package includes mounting hardware, an A-RGB (RBW) LED strip, and the option of including a DDC pump with armor, a DDC pump with LCD, or no pump at all. Bykski Distro Plates are an excellent option for those looking for a clean, visually appealing water-cooling solution that provides high-quality performance.
Specifications – Distro Plate
Material: PMMA
Thread: G1/4″
Compatibility
Compatible with COUGAR CONQUER 2 case
Loop: Aluminum or Non-Aluminum
Radiator: Designed for 30mm thick or less
Included Parts
1x Distro plate
Mounting Hardware
A-RGB (RBW) LED Strip
Optional DDC pump with armor, DDC pump with LCD, or No Pump Included
Specifications – Optional DDC
Heatsink Material: Aluminum
Power: Standard 4-pin power connector and a PWM 4-Pin header
Voltage Range: 10V – 15V DC
MTBF (Mean Time Between Failure): 50,000 hours equivalent to 5 years of lifetime
Maximum discharge:~ 132 GPH (600 LPH)
Max RPM:5000
Dimensions:62 x 62 x 58mm
The performance will vary based on the cooling loop dynamic
Important Note:
This distro is designed for this case only. The tubing may not align perfectly horizontally due to variations in the motherboard, blocks, fittings, and layout. Not responsible for any hardware damage. Please use at your own risk.
